CE Automatic Puff Corn Snack Food Extruder
Short Description:
puffed snack food making machine can do the works of raw materials preparation, extrusion, shaping, cutting, coating and flavoring at the same time, which is high automatic machine. Snacks food machine has the advantages of more machines choice, flexible and diverse configurations, wide range of raw materials application, numerous in products variety and easy operation. Corn snack pellet processing machine can make the puffed snack food,such as puff snack,core filling snack,corn flakes etc.
1. Snack Food Production Line Introduction
2. puffed snack food making machine in snacks food production line

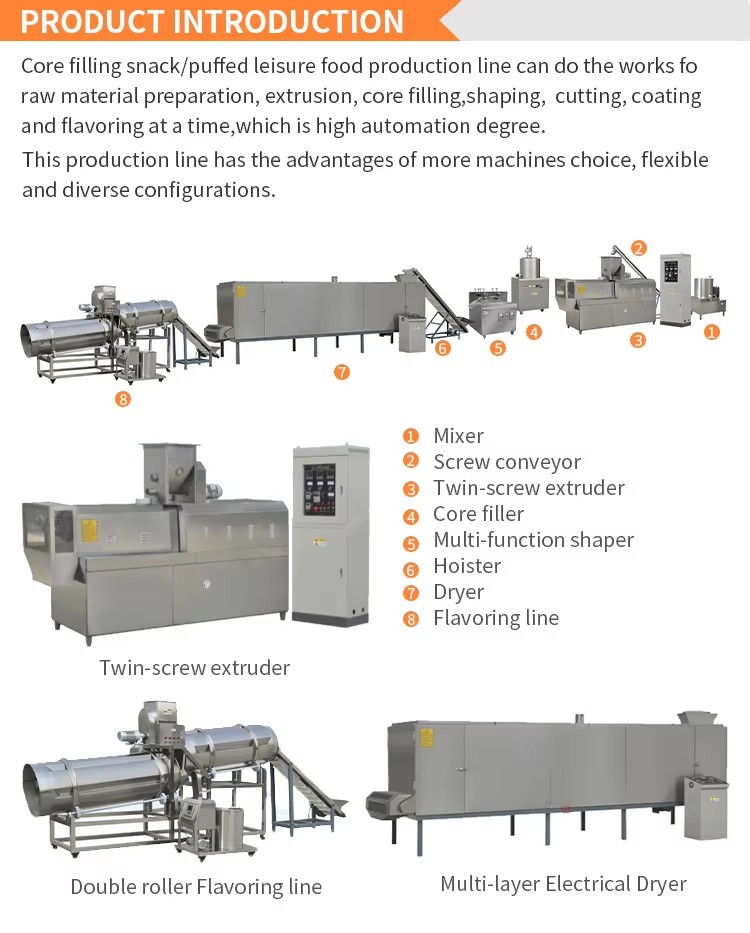

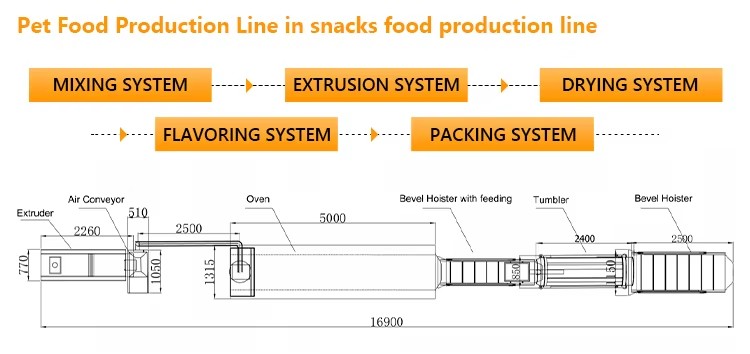

Mixer– Screw conveyor — Twin screw extruder(snacks food machine) — Air conveyor — Dryer — Flavor machine- Cooling machine
3. Voltage of puffed snack food making machine
Three Phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers` Local voltage according to different countries.
4. Raw material of puffed snack food making machine
Snacks food machine adopts corn powder/rice powder/wheat flour as raw materials meanwhile mixing with water and other additive.
5. Final product of puffed snack food making machine
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
6. Capacity and Technical parameter of puffed snack food making machine
The following are technical parameter details of different puffed snack food making machine
| Model | Output | Total Power | Power consumption | Extruder Size |
| DXY-65 | 120-150kg/h | 70kw | 40kw | 2.5*0.8*1.7m |
| DXY-70 | 200-260kg/h | 95kw | 70kw | 3.5*1.0*1.7m |
| DXY-85 | 400-800kg/h | 140kw | 105kw | 4.5*1.2*1.8m |
